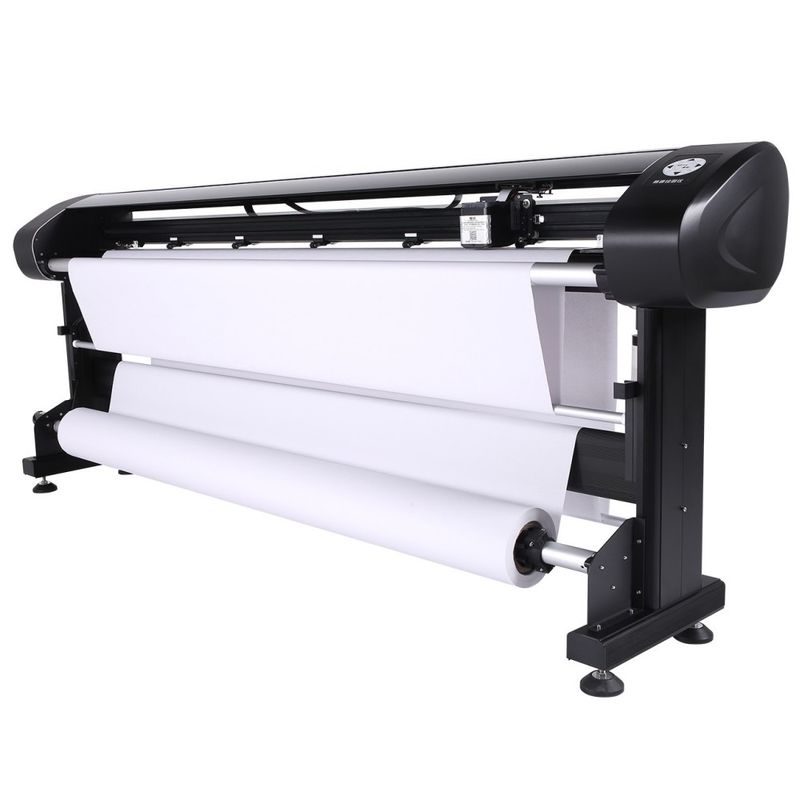

Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs

Einzelheiten zum Produkt

Herkunftsort: Hubei, China

Markenname: KAEMI / GM or OEM

Zahlungs- und Versandbedingungen

Preis: $1,760.00/sets 1-2 sets

Erhalten Sie besten Preis
Einzelheiten zum Produkt
Hervorheben:

refillable 230ml ink cartridge

,

big ink cartridge for plotter

,

continuous printing plotter cartridge

Die Situation:
Neues
Anwendbare Branchen:
Bekleidungsbetriebe, Herstellungsbetriebe, Maschinenreparaturbetriebe, Heimgebrauch, Einzelhandel, D
Gewicht (Kg):
100
Standort des Ausstellungsraums:
Türkei, Vietnam, Bangladesch, Kambodscha
Video-Ausgangsinspektion:
Bereitgestellt
Maschinenprüfbericht:
Bereitgestellt
Art der Vermarktung:
Gewöhnliche Ware
Gewährleistung für Kernkomponenten:
1 Jahr
Kernkomponenten:
Motor
Gewährleistung:
1 Jahr, Mutterbrett und Fahrer
Produktbezeichnung:
Druckplotter Großer kontinuierlicher wieder auffüllbarer Tintenbehälter Plotter
Macht:
300 bis 400 W
Auflösung des Druckes:
150-600 DPI
Verbindungs-Hafen:
Netzwerk-/LAN-Anschluss
Druckpapier:
Weißes Plotterpapier von 40-80 g; Kraftpapier von 80-250 g
Tinten-Patrone:
Wiederauffüllbare 230 ml große Tintenpatrone
Schnitt von Funktion:
Ja, mit Schneidemesser, um Papier nach dem Drucken zu schneiden
Druckgeschwindigkeit:
120 qm/h Doppelweg-Schnelldruck
Anwendung:
Papiermuster, Grafik, Konturdruck
Unterstützte Dateiformate:
HPGL, PLT, DXF, HPGL Sprache, kompatibel mit verschiedenen CAD-Software
Die Situation:
Neues
Anwendbare Branchen:
Bekleidungsbetriebe, Herstellungsbetriebe, Maschinenreparaturbetriebe, Heimgebrauch, Einzelhandel, D
Gewicht (Kg):
100
Standort des Ausstellungsraums:
Türkei, Vietnam, Bangladesch, Kambodscha
Video-Ausgangsinspektion:
Bereitgestellt
Maschinenprüfbericht:
Bereitgestellt
Art der Vermarktung:
Gewöhnliche Ware
Gewährleistung für Kernkomponenten:
1 Jahr
Kernkomponenten:
Motor
Gewährleistung:
1 Jahr, Mutterbrett und Fahrer
Produktbezeichnung:
Druckplotter Großer kontinuierlicher wieder auffüllbarer Tintenbehälter Plotter
Macht:
300 bis 400 W
Auflösung des Druckes:
150-600 DPI
Verbindungs-Hafen:
Netzwerk-/LAN-Anschluss
Druckpapier:
Weißes Plotterpapier von 40-80 g; Kraftpapier von 80-250 g
Tinten-Patrone:
Wiederauffüllbare 230 ml große Tintenpatrone
Schnitt von Funktion:
Ja, mit Schneidemesser, um Papier nach dem Drucken zu schneiden
Druckgeschwindigkeit:
120 qm/h Doppelweg-Schnelldruck
Anwendung:
Papiermuster, Grafik, Konturdruck
Unterstützte Dateiformate:
HPGL, PLT, DXF, HPGL Sprache, kompatibel mit verschiedenen CAD-Software
Produkt-Beschreibung
Product Overview

Cutting and Printing Plotter Big Continuous Refillable Ink Tank Paper Pattern Plotter

This New Arrival EP806 Big Ink Cartridge Printing Plotter is of Extremely High Cost Performance.
1. Big 230ml Refillable Ink Cartridge(Standard HP45 Type Printing Plotter Each Ink Cartridge is only 42ml);
2.High Quality EPSON TX806 Printing Head, Fast Dual Way Printing,120 Square Meters Per Hour Printing Speed;
3.Quality Triangle Cutting Blade can Cut Down Paper After Printing.
FEATURES AT A GLANCE
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 0
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 1
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 2
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 3
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 4
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 5
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 6
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 7
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 8
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 9
PRODUCT SPECIFICATIONS
EPSON Printing Head Big 230ml Refillable Ink Cartridge Printing Plotter
Model #
EP806-130
EP806-170
EP806-190
EP806-210
EP806-230
EP806-250
Plot width
125cm
165cm
185cm
205cm
225cm
245cm
Paper width
130cm
170cm
190cm
210cm
230cm
250cm
Plot speed
90 square meters per hour
File format
HPGL language, compatible with various CAD software
Cutting function
Auto cutting after ploted one marker
Resolution
150-600DPI
Print head type
EpsonTX806
Print head safety
Inktruck reset automatic protection
Ink tank
with a capacity of 230 ML
Line quality
Clean, smoothly, and adjustable line thickness
Clean print head
Auto cleanning print head
Load paper system
Front loading, Maximum roll diameter 28 cm
Feed paper system
Hidden infrared precision paper system, accurate and efficient
Take-up paper system
Take-up plotting mode or drop-on-floor plotting mode
Paper
White plotter paper 40-80 gsm, Kraft papper 80-250 gsm
Interface
Network(LAN Port or Ethernet Port)
Power supply
220V/50Hz
Panel
Simple, convenient and durable
Machine structure
Aluminum alloy structure, high machine precision, long lifetime
Software center
Drive-free, fully automatic online, support multiple independent control
PRODUCT CONFIGURATION
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 10
230mah Refillable Big Ink Cartridge
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 11
       Triangle Blade to Cut Down Paper
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 12
          High Quality & Speed Motor
Company Profile
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 13
Title goes here.
Since its establishment, GEMEI has developed a series of cutting machines for clothing, bags, shoes and hats, and obtained a number of software copyright and patent certificates. Based on the profound understanding of China’s garment, luggage and footwear industry, GM series of cutting machine combines the essence of Chinese and foreign technologies, closely combines the advantages of the world's advanced technology and Chinese manufacturing industry, adopts a novel design different from the domestic traditional cutting machine, and fully experiences the design principle of "good at core, simple in shape". After the first
continuous drum cutter came into being in the middle part of China , we successively developed the sample cutter for the luggage industry and continuous cutting garment sample cutter. "The competition of enterprises is the competition of talents." GEMEI firmly grasps the trend that the world manufacturing industry is transferring to the middle part of the world, and has established a research and development team composed of doctors and senior engineers and other high-quality talents,and insists that "innovation" is the eternal power of the development of GEMEI.
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 14

CCTV Listed Brand

Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 15

National High Tech Enterprise

Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 16

Patents and Certificates

Product packaging
Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 17

Plotter Quality Wooden Case

Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 18

Flatbed Cutter Wooden Case

Refillable 230ml Big Ink Cartridge Paper Pattern Plotter for Continuous Printing Jobs 19

CNC Digital Cutter Big Wooden Case

FAQ
1. Q: Are you a manufacturer?
A: Yes, we are specializing in the r&d production for template cutter/inkjet cutter/pen writing cutter/cnc digital fabric
cutter/graph plotter in this field for 10 years.
2. Q: How do you pack these products?
A: Usually packed in wooden case and can pack according to export standard or your requirement.
3. Q: Is it customizable?
A: Yes, We have basic sizes commonly applied in the field and can customize according to your requirements.
4.Q: After-sales service
A: Yes, professional after-sales team and 24-hour technical support by phone, email or skype
5.Q: What is your lead time?
A: Spot goods usually take 2-4 days, and customization takes 5-7 days
